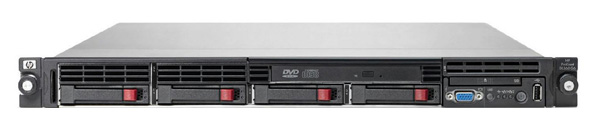

HP DL360 G6
| 整机信息 | |
| 名称 | HP ProLiant DL360 G6 Server series |
| 型号 | |
| 品牌 | HP |
| 类型 | PC服务器 |
| CPU信息 | 最多两个处理器 |
| CPU类型 | 英特尔 至强 |
| CPU插槽数 | 2 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | 1U |
| 硬盘信息 | 存储类型 热插拔 SFF SAS,热插拔 SFF SATA |
| 最大硬盘数量 | 8 |
| 内存提示 | 内存类型：PC3-10600R 寄存式DDR3内存, P3tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvvC3-10600E 无缓冲DDR3内存 或PC3-8500R 寄存式 DDR3内存 |
| 支持内存容量范围 | 内存最大容量144 GB 寄存式内存(48 GB 无缓冲内存) |
| 内存插槽数量 | 18 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 冗余电源 可选配 |
| 单机电源数量 | 2 |
| 介质托架 | HP DL360 SL 12.7mm SATA DVD；HP DL360 SL 12.7mm SATA DVD-RW 光驱套件 |
| 适配器插槽 | 2 个 PCIe G2 插槽 - 1 个全长 x16 和 1 个半高 x8 PCI-Express |
| 端口 | 4 个 USB 端口(前面 1 个,内部 1 个,后面 2 个);HP NC382i 双端口多功能千兆服务器适配器 |
| 发布日期 | |
| 下架日期 | 2011/4/30 |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server; Microsoft Windows Server Hyper-V; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Oracle Solaris; NetWare; Vmware; Citrix XenServe. |
| 产品尺寸 | (高x宽x长) (带支架) 4.32x42.62x70.49 厘米(1.70x16.78x27.75英寸) |
| 产品重量 | 最大17.92kg |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 505878-B21 | HP DL360 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit | |
| 505878-L21 | HP DL360 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) FIO Processor Kit | |
| 505880-B21 | HP DL360 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit | |
| 505880-L21 | HP DL360 G6 Intel® Xeon® E5530 (2.53GHz/4-core/8MB/80W) FIO Processor Kit | |
| 505882-B21 | HP DL360 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit | |
| 505882-L21 | HP DL360 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit | |
| 505884-B21 | HP DL360 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit | |
| 505884-L21 | HP DL360 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) FIO Processor Kit | |
| 505886-B21 | HP DL360 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit | |
| 505886-L21 | HP DL360 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit | |
| 507663-B21 | HP DL360 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) Processor Kit | |
| 507663-L21 | HP DL360 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) FIO Processor Kit | |
| 507674-B21 | HP DL360 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit | |
| 507674-L21 | HP DL360 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) FIO Processor Kit | |
| 507676-B21 | HP DL360 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit | |
| 507676-L21 | HP DL360 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) FIO Processor Kit | |
| 507678-B21 | HP DL360 G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) Processor Kit | |
| 507678-L21 | HP DL360 G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) FIO Processor Kit | |
| 507680-B21 | HP DL360 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit | |
| 507680-L21 | HP DL360 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit | |
| 507682-B21 | HP DL360 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit | |
| 507682-L21 | HP DL360 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit | |
| 583379-B21 | HP DL360 G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) Processor Kit | |
| 583379-L21 | HP DL360 G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) FIO Processor Kit | |
| 588062-B21 | HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit | |
| 588062-L21 | HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit | |
| 588064-B21 | HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit | |
| 588064-L21 | HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit | |
| 588066-B21 | HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit | |
| 588066-L21 | HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit | |
| 系统板 | ||
| 516966-B21 | HP DL360G6 SFF HD Backplane Kit | |
| 内存 | ||
| 462967-B21 | HP 512MB P-Series Battery Backed Write Cache Upgrade | |
| 462968-B21 | HP 256MB P-series Cache Upgrade | |
| 500656-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500658-B21 | HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500660-B21 | HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit | |
| 500662-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500666-B21 | HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | |
| 500668-B21 | HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500670-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500672-B21 | HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 534562-B21 | HP 1GB Flash Backed Cache | |
| 534916-B21 | HP 512MB Flash Backed Write Cache | |
| 593339-B21 | HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 硬盘 | ||
| 458924-B21 | HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 460355-B21 | HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 507125-B21 | HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 year Warranty Hard Drive | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 512545-B21 | HP 72GB 6G S3tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvvAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 530888-B21 | HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 572071-B21 | HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 572073-B21 | HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 581284-B21 | HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 581286-B21 | HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| SCSI卡 | ||
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 网卡 | ||
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | |
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter | |
| 516937-B21 | HP10 GbE PCI-e G2 Dual Port Network Adapter | |
| 538696-B21 | HP NC375T PCI Express Quad Port Gigabit Server Adapter | |
| 581201-B21 | HP NC550SFP Dual Port 10GbE Server Adapter | |
| 593717-B21 | HP NC523SFP 10Gb 2-port Server Adapter | |
|
593722-B21 593743-001 |
HP NC365T 4-port Ethernet Server Adapter | |
| 适配卡 | ||
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 488765-B21 | HP SC08Ge Host Bus Adapter | |
| 572531-B21 | HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 578229-B21 | HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 583211-B21 | QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA | |
| 592520-B21 | HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA | |
| 592521-B21 | HP InfiniBand 4X DDR ConnectX-2 PCIe G2 Dual Port HCA | |
| 614988-B21 | HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | |
| AW520A | HP StorageWorks CN1000E Dual Port Converged Network Adapter | |
| BS668A | HP CN1000Q Dual Port Converged Network Adapter | |
| 光纤卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| 电源 | ||
| 437573-B21 | HP 1200W Common Slot -48VDC Hot Plug Power Supply Kit | |
| 500172-B21 | HP 1200W 12V Hot Plug AC Power Supply | |
| 503296-B21 | HP 460W Common Slot Gold Hot Plug Power Supply Kit | |
| 512327-B21 | HP 750W Common Slot Gold Hot Plug Power Supply Kit | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| 电池 | ||
| 462969-B21 | HP 650 mAh P-Series Battery | |
| 光驱 | ||
| 532066-B21 | HP DL360 SL 12.7mm SATA DVD | |
| 532068-B21 | HP DL360 SL 12.7mm SATA DVD-RW Optical kit | |
| 磁带机 | ||
| AJ830A | HP DAT 320 SAS Internal Tape Drive | |
| AK377A | HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | |
| AK378A | HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library | |
| AK380A | HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library | |
| BL536A | HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | |
| BL537A | HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | |
| BL538A | HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | |
| EH847A | HP StorageWorks Ultrium 920 SAS Internal Tape Drive | |
| EH946B | HP StorageWorks LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit | |
| EJ014A | HP StorageWorks LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount | |
| 导轨 | ||
| AF092A | HP 10642 G2 1200mm deep Shock Rack | |
| AF094A | HP 10647 G2 1200mm deep Shock Rack | |
| 线缆 | ||
| 496013-B21 | HP Mini SAS to Mini SAS 28in Cable Assembly | |
| 591734-B21 | HP 8484 to Mini SAS 33in Cable Assembly | |
| 627121-B21 | HP Chipset SATA Cable Kit | |
| AF556A | Nema 5-15P to IEC320-C13 | |
| 其它 | ||
| 252663-B24 | HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC) (WW) | |
| 252663-D72 | HP 24A High Voltage Modular Power Distribution Unit (North America, Japan) - 4.9 kVA Modular PDU, 24A | |
| 252663-D73 | HP Modular Power Distribution Units (Zero-U/1U Modular PDU) - 8.3 kVA Modular PDU, 40A (USA, Canada, Japan) | |
| 365403-B21 | 1U ambidextrous cable management arm | |
| 381513-B21 | HP Smart Array P800/512 BBWC Controller | |
| 418408-B21 | HP StorageWorks 60 Modular Smart Array | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 436222-B21 | HP Insight Software Media Kit | |
| 452148-B22 | HP Insight Control suite, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 452151-B21 | HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 462830-B21 | HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | |
| 462832-B21 | HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | |
| 462834-B21 | HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | |
| 484184-B21 | HP ProLiant DL360 G6 Configure-to-order Rack Server | |
| 487204-B21 | HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | |
| 488069-B21 | HP Trusted Platform Module Option | |
| 491191-B21 | HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller | |
| 491193-B21 | HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller | |
| 507937-B21 | HP DL360G6 X5550 HPM FIO Perf Pack | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516471-B21 | HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | |
| 518824-B21 | PCI-X Riser option | |
| 519254-B21 | HP DL360G6 PCI Thermal Power Cable Kit | |
| 580387-B21 | HP 4GB Secure Digital High Capacity Flash Media Kit | |
| 582765-B21 | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | |
| 600278-B21 | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | |
| 600279-B21 | HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | |
| 600281-B21 | HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 600282-B21 | HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 608447-B21 | HP 2GB USB Flash Media Drive Key Kit | |
| 641027-B21 | HP 1.28TB Multi Level Cell PCIe IO Accelerator | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF419A | HP R13tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvv.5 VA 1U Uninterruptible Power System | |
| AF426A | HP Rack Uninterruptible Power System R5500 (North America or Japan) | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF506A | HP Single Input 1 Phase 40A Monitored Power Distribution Unit (North America, Japan) | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AF618A | HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF619A | HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF620A | HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF621A | HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF622A | HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AJ767A | HP RDX320 Internal Removable Disk Backup System | |
| AJ934A | HP RDX500 Internal Removable Disk Backup System | |
| AJ940A | HP D2600 Disk Enclosure | |
| AJ941A | HP D2700 Disk Enclosure | |
| AP835B | HP DAT 320 USB in 1U Rack-mount Kit | |
| AZ870A | HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor | |
| AZ885A | HP TFT7600 G2 KVM Console Rackmount Keyboard TAA Monitor | |
| DC172B | HP USB 2-Button Optical scrolling mouse (Carbonite Black and Silver) - Has 1.8m (6.0 feet) long cable with USB connector | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| EH993B | HP D2D4112 Backup System | |
| EJ001B | HP D2D2502i Backup System | |
| EJ002B | HP D2D2504i Backup System | |
| T9074BAE | HP Insight Control including 1yr 24x7 Technical Suppo3tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvvrt and Updates Electronic License | |
| T9082AAE | HP Ins3tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvvight Control Server Deployment including 1yr 24x7 Support Electronic License | |
| TA850AAE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | |
| TC203A | HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | |
| TC208A | 3tZ2AxOQF9o7YbYwY8yAKhbjU.#HQvvHP Insight Control for Linux Media Kit | |
| TC209A | HP Insight Control for Linux including 1yr 24x7 Support Single Server License | |
| TC213AAE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License | |
| TC275A | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License | |
| TC278AAE | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | |
| TC330AAE | HP Data Protector Express V5.0 for 1 Server E-LTU | |
| TC331AAE | HP Data Protector Express V5.0 for 3 Servers E-LTU | |
| TC332AAE | HP Data Protector Express V5.0 for 10 Servers E-LTU | |
| TC333AAE | HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU | |
| U4496E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4497E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4498E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4506E | Hardware Installation, Electronic | |
| U4507E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4509E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U6310E | Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
