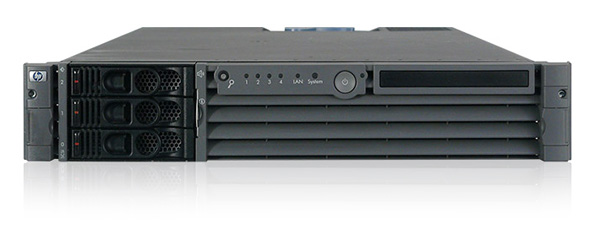

HP RP3440
| 整机信息 | |
| 机架类型 | 机架式 |
| 机架空间 | 2U |
| CPU信息 | 1-2 个时钟速度 800MHz 和 1.0GHz 的双核处理器 |
| CPU类型 | PA-8900 |
| CPU插槽数 | 2 |
| 硬盘信息 | 提供36GB、73GB、146GB 和300GB 驱动器；3 个热插拔Ultra320 SCSI；最大内部存储900GB |
| 最大硬盘数量 | 3 |
| 内存提示 | PC2100 ECC 寄存式DDR266A |
| 支持内存容量范围 | 最小内存1GB，最大内存32GB |
| 内存插槽数量 | 8 |
| 电源描述 | 最大输入电流： 8A @ 100-127VAC；4A @ 200-240VAC（自动调节范围）；线频： 50-60Hz；通常系统功耗： 600W。 |
| 单机电源数量 | 2 |
| 介质托架 | 1 个用于DVD-ROM 或DVD+RW 光驱的开放托架 |
| 适配器插槽 | 提供4 个全长、64- 位/133 MHz PCI-X 插槽；4.0 GB/s 总I/O 带宽； |
| 端口 | 双端口 10/100/1000Base-TX 以太网；面向本地人机接口的VGA 和 4 个USB 端口；2 个通用的RS-232 串行端口；用于Integrated Lights Out（iLO）管理的 2 个RS-232 串口和 10/100Base-T 局域网；可选的管理处理器卡。 |
| IO适配器 | 双通道Ultra160 SCSI，配置为2 个内部/1 个外部 |
| 操作系统 | HP-UX 11i v1；HP-UX 11i v2。 |
| 产品尺寸 | 机架外形 高：3.4 英寸（86 毫米）/2U EIA；宽：19.0 英寸（483 毫米）；深：26.8 英寸（680 毫米）。立式外形 高：19.5 英寸（495 毫米）；宽：11.6 英寸（295 毫米）；深：26.6 英寸（675 毫米） |
| 产品重量 | 最大配置：56 磅（25 千克） |
| 配件信息 | |
| PN号 | 描述 |
| CPU | |
| A7135-69103 | Processor - 1.0GHz, PA-8800 Central processing unit |
|
A7135AX A7135-69102 |
Processor - 1.0GHz, PA-8800 Central processing unitProcessor - 1.0GHz, PA-8800 Central processing unit |
| 系统板 | |
| A6961-67005 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67007 | Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-67009 | QuickFind diagnostic board - Includes the plastic cover and label |
| A6961-67015 | Power distrubution board - Has connectors for two hot-swap power supplies - Attached to the rear power supply cage underneath the hot-swap power supply fan unit |
| A6961-67105 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67106 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67109 | QuickFind diagnostic board - Includes the plastic cover and label |
| A6961-67115 | Power distrubution board - Has connectors for two hot-swap power supplies |
| A6961-67206 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67207 | Replaced: A6961-67207 Processor extender board - Has two processor sockets on one side and two on the other side |
|
A6961-69204 A6961-67204 |
Memory board - 16 SLOT memory carrier |
|
A6961-69207 A6961-67207 |
Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-69501 | I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
|
A6961-69511 A6961-67411 |
I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
|
A6961-69804 A6961-67804 |
Memory board - 16-slot memory carrier |
|
A7136-69001 A7136-67001 |
SPS-Assy StormPeak Sys. Brd |
|
A7136-69101 A7136-67101 |
System processor boardSystem processor board |
| A9739-69007 | Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
|
A9739-69008 A9739-67008 |
Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
| 硬盘 | |
|
AB420-69001 AB420-67001 |
36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
|
AB421-69001 AB421-67001 |
73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
|
AB422-69001 AB422-67001 |
146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| 硬盘背板 | |
| A6961-67205 | SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board |
| AB587-60005 | SCSI backplane board - Has three connectors for hot-swap hard drives |
| 网卡 | |
| A5838-69101 | Dual port 10Base-T/100Base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
|
AB290-69002 AB290-67002 |
Dual port 10Base-T/100Base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
| AB545-60001 | 1000Base-TX LAN four port host adapter board - Supports all PCI bus configurations - Has four RJ-45 connectors - Requires one PCI slot - For HP-UX operating system |
| 显卡 | |
| 30-10119-02 | ATI RADEON 7500 graphics controller - 64MB DDR SDRAM memory, 350MHz RAMDAC |
| A6150-60001 | 2D PCI graphics card-Provides two USB ports |
| 电源 | |
| 0950-4621 | Hot-swap redundant power supply - 650W |
| A6961-67225 | Power supply - 700W,48V |
| 风扇 | |
| A7231-04014 | Super 80mm tubeaxial fan |
| A7231-04058 | Super 80mm tubeaxial fan |
| A7231-04060 | Thin 80mm fan |
| AB331-04006 | CPU/Chassis fan |
| 线缆 | |
|
A6144-63001 A6144-63007 A6144-63019 |
Management processor M-cable |
| A6961-63014 | Power distribution board to midplane board cable - Has 10-pin connectors at each end |
| A6961-63015 | Power distribution board to midplane board ribbon cable |
| A6961-63016 | QuickFind diagnostic board to midplane board cable |
| A6961-63017 | Internal SCSI cable |
| A6961-63018 | SCSI backplane board to midplane board cable |
| A6961-63020 | SCSI controler jumper cable (simplex only) |
| A7231-04018 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies |
| A7231-04048 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies |
| A7231-63002 | Data cable - For IDE CD-ROM/DVD drive - Connects between the CD-ROM/DVD drive and the system processor board |
| A7231-63026 | Data cable - For IDE CD-ROM/DVD drive |
| A7231-63027 | Status panel cable |
| A7231-63028 | Hard drive power cable |
| A7231-63029 | Y-cable assembly for super-80mm fan - 6-wire (three per connector) fan cable |
| A7231-63030 | Y-cable assembly for 80mm fan - 12-wire (three per connector) fan cable |
| A7231-63032 | Flex cable - For the management processor card |
| A7231-63038 | SCSI cable A-channel - Has one connector at each end |
| A7231-63039 | SCSI cable B-channel - Has one connector at each end |
| J3525-60102 | X.21 interface cable |
| J3525-60103 | V.35 interface cable |
| J3525-60105 | RS-232 interface cable |
| J3525-60106 | RS-499 interface cable |
| J3525-60107 | X.21 interface cable |
| J3525-60108 | V.35 interface cable |
| J3525-60109 | RS-530 interface cable |
| 机壳 | |
| A7231-04063 | Pedestal - For supporting the chassis in a deskside/tower configuration |
| A7231-04064 | Side cover (metallic alloy) - For deskside configuration RoHS: Modified |
| A7231-04066 | Right side bezel (Graphite) - For rack mount configuration |
| A7231-04068 | Left side bezel with rack latch - For rack mount configuration |
| A7231-04071 | Main cover (Carbon Black) - Metal cover with blue-colored release handle |
| AB297-2104A | Cover kit (unpainted) - Includes top cover and two side covers |
| 其它 | |
| A6961-67113 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane board cable |
| A6961-67213 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane |
| A7231-04072 | PCI/AGP card cage - Includes the metal frame and cover (PC board NOT included) |
